Performance testing on Raspberry Pi 4

29.12.2020.

Not long ago, Yucca gained support for the ARM and ARM64 architectures, so we ran a test – how many cameras can be added on the popular Raspberry Pi single-board computer.

Testing

We took the entry-level Raspberry Pi 4 board with 2 gigabytes of RAM and a Geekworm x832 board for connecting a 3.5" HDD. A video review is available on our Youtube channel.

Installation on a Raspberry Pi and on a home PC running Linux doesn't differ; you just need to choose the correct architecture in the documentation section. For the Raspberry Pi 3 and 4, the ARM architecture is suitable, and for the Raspberry Pi 4 with 8 gigabytes of RAM, choose ARM64.

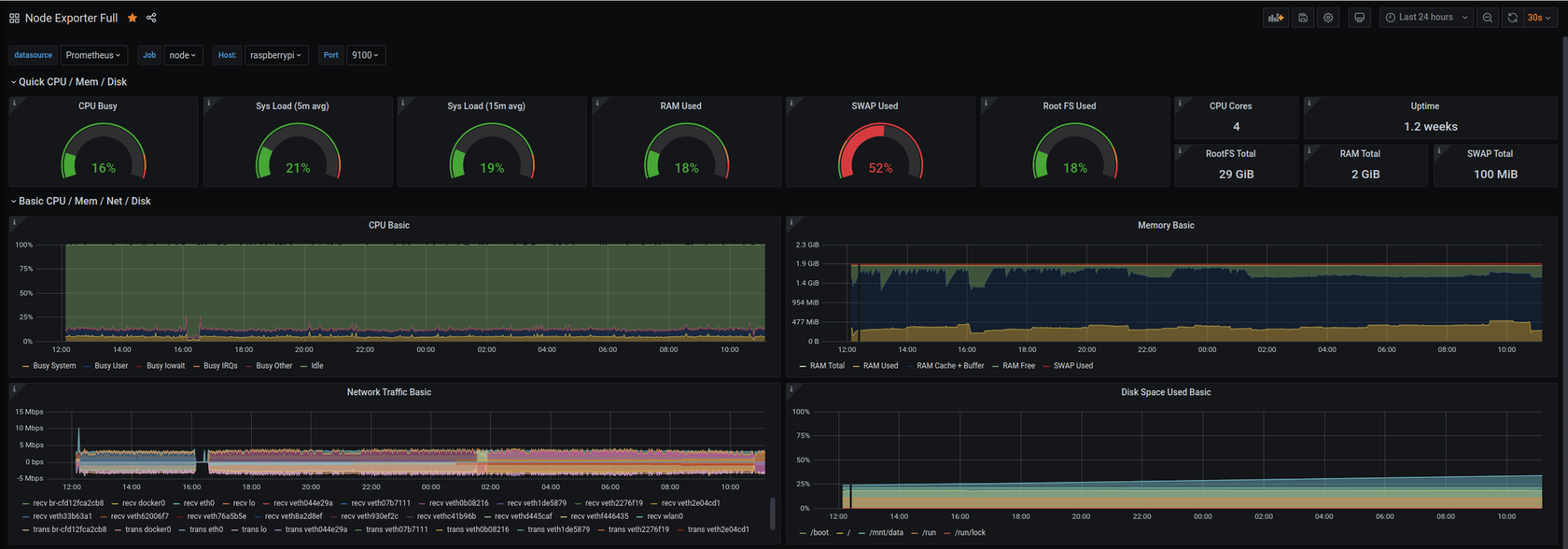

After building and installing Yucca, we added 2 cameras with archive recording to the HDD. Over 24 hours we got the following resource utilization figures:

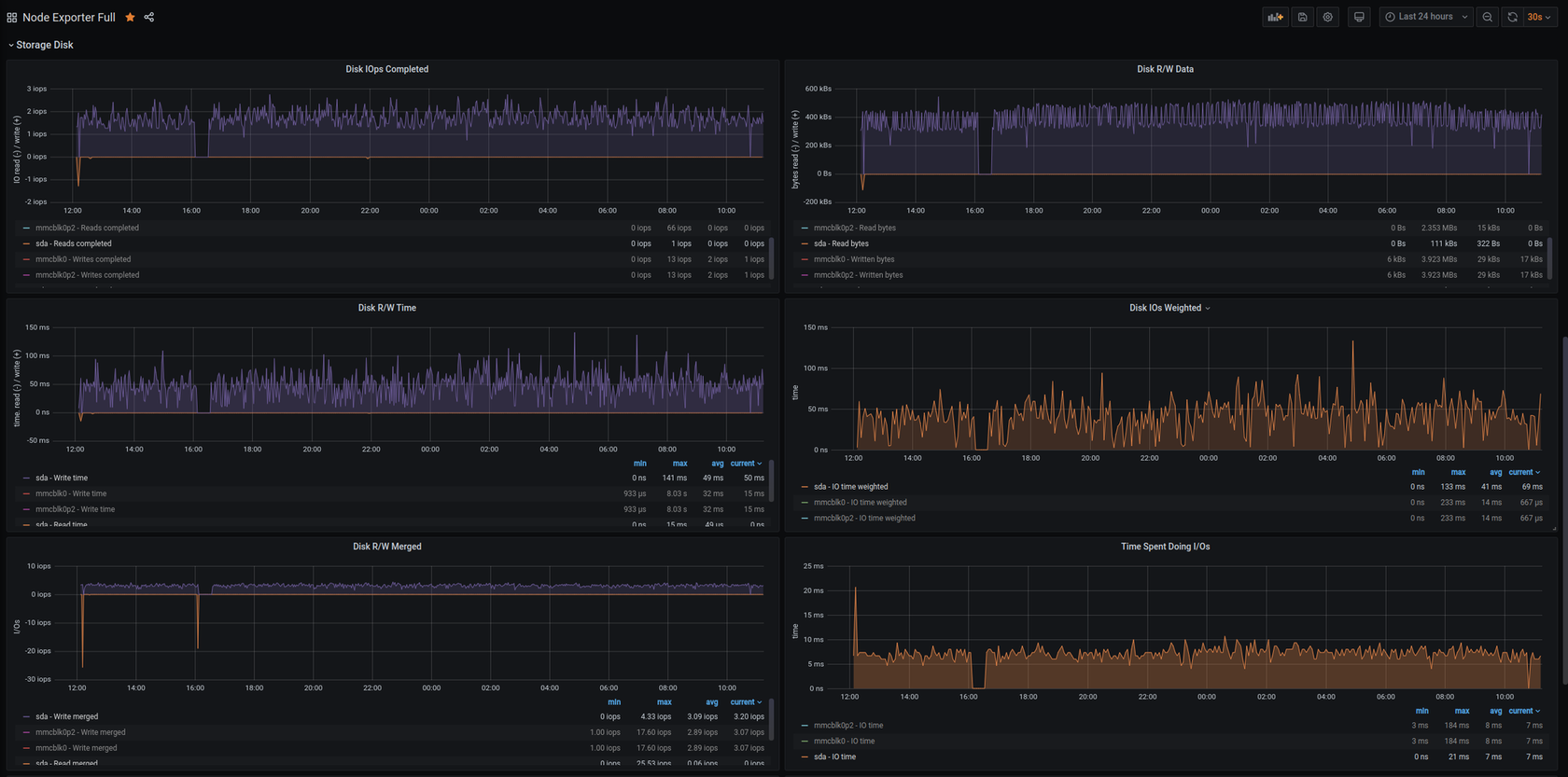

Hard drive (HDD) metrics:

In terms of performance, running on a Raspberry Pi doesn't differ much from running on an AMD64 server in a data center:

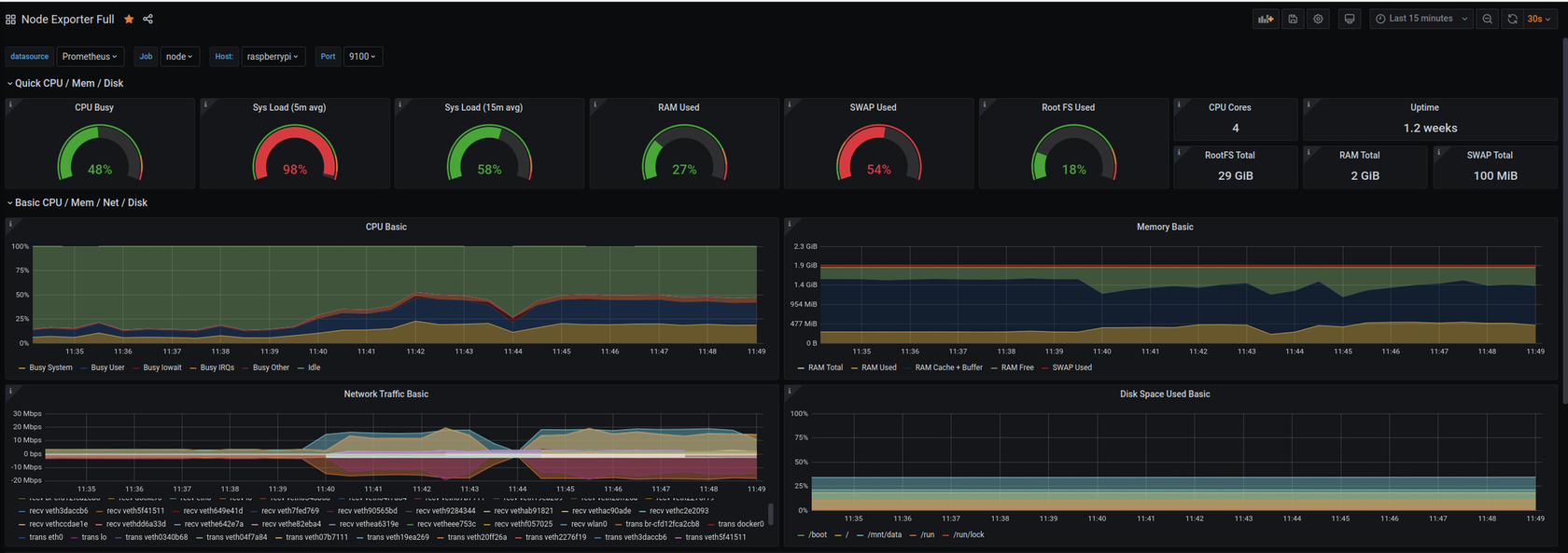

But who's interested in watching performance with just 2 cameras? Let's try to squeeze the maximum out of the board – let's add 10 more streams. Overall figures:

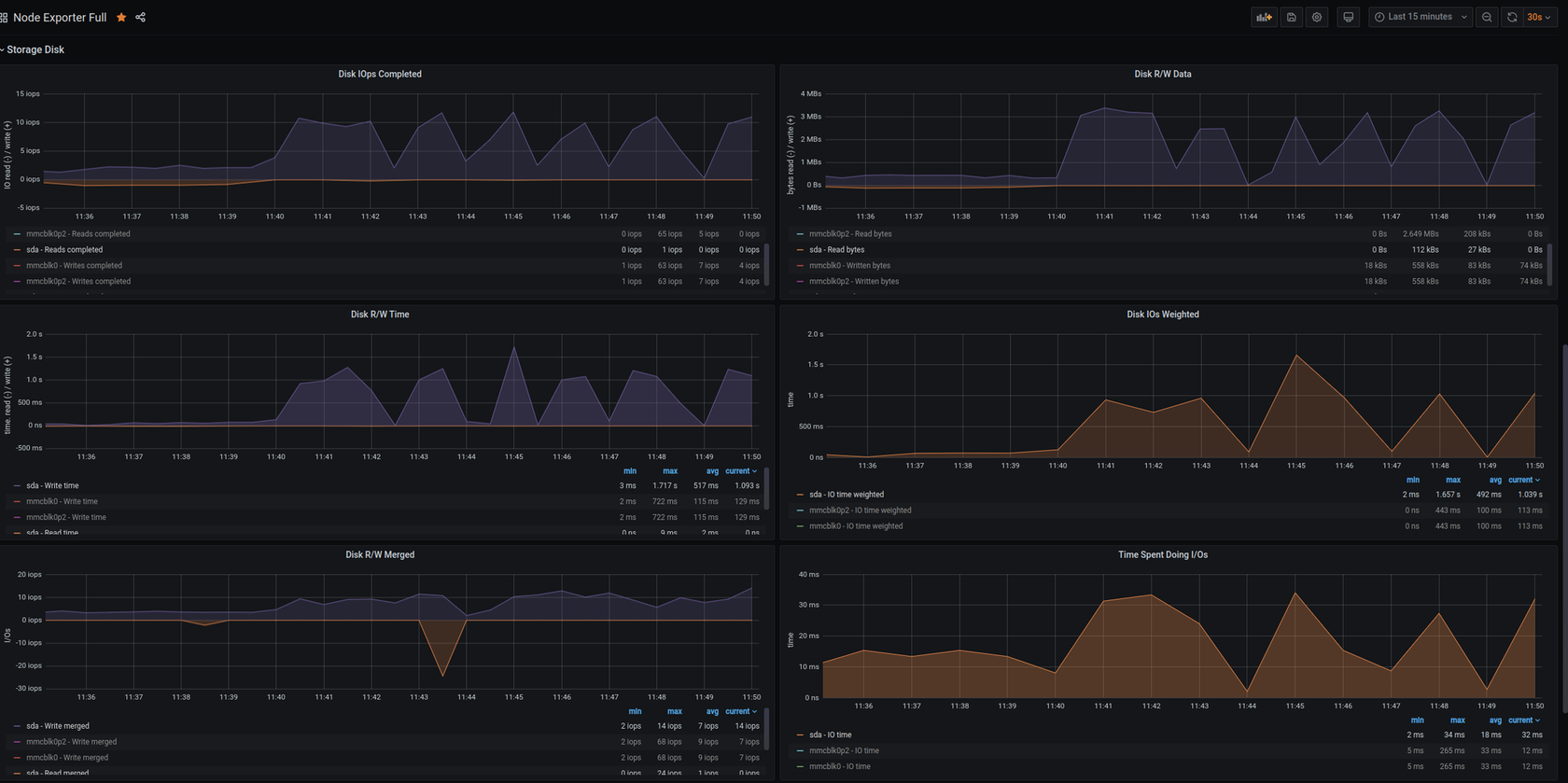

Hard drive (HDD) metrics:

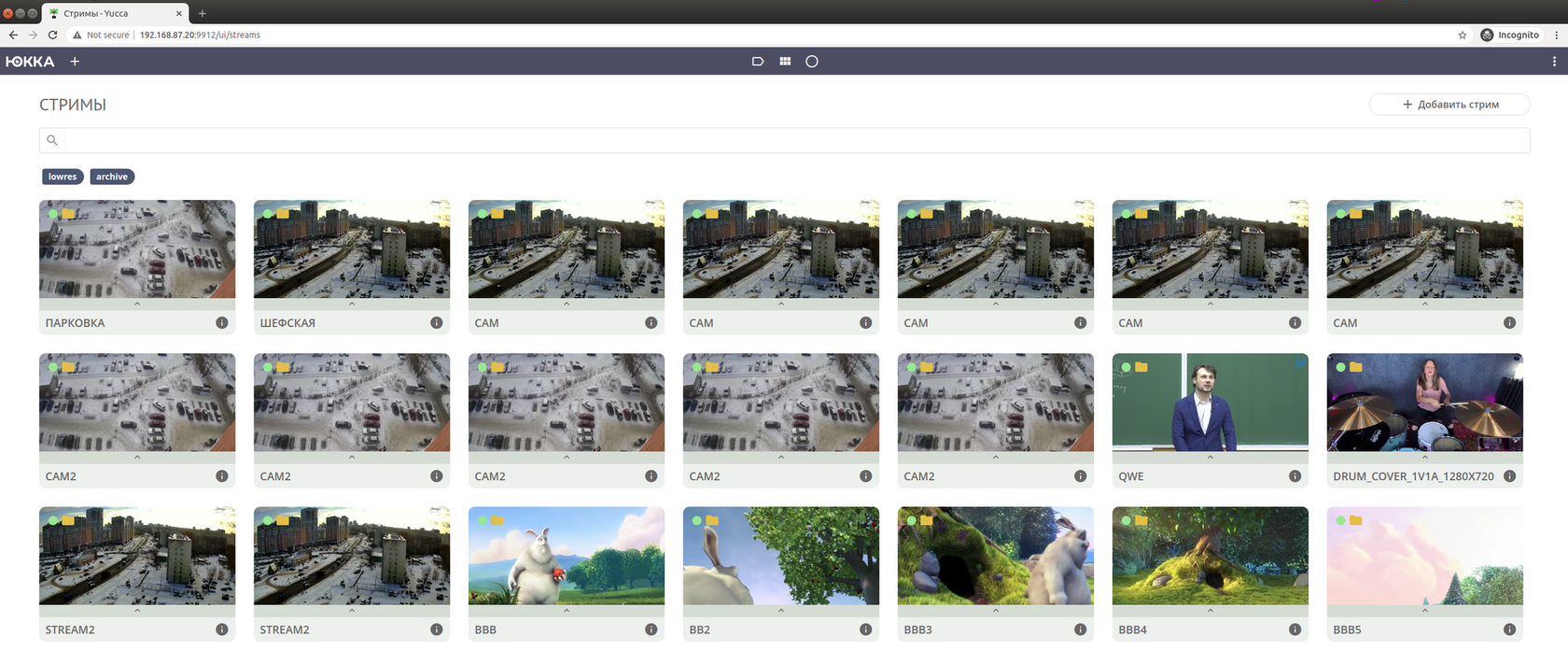

The LA grew significantly, but that's normal since 2 processes are started per stream – many cameras, many processes, many interrupts. Once LA goes past 1, a queue builds up and this affects responsiveness, but it keeps working. In total, I managed to add 21 cameras:

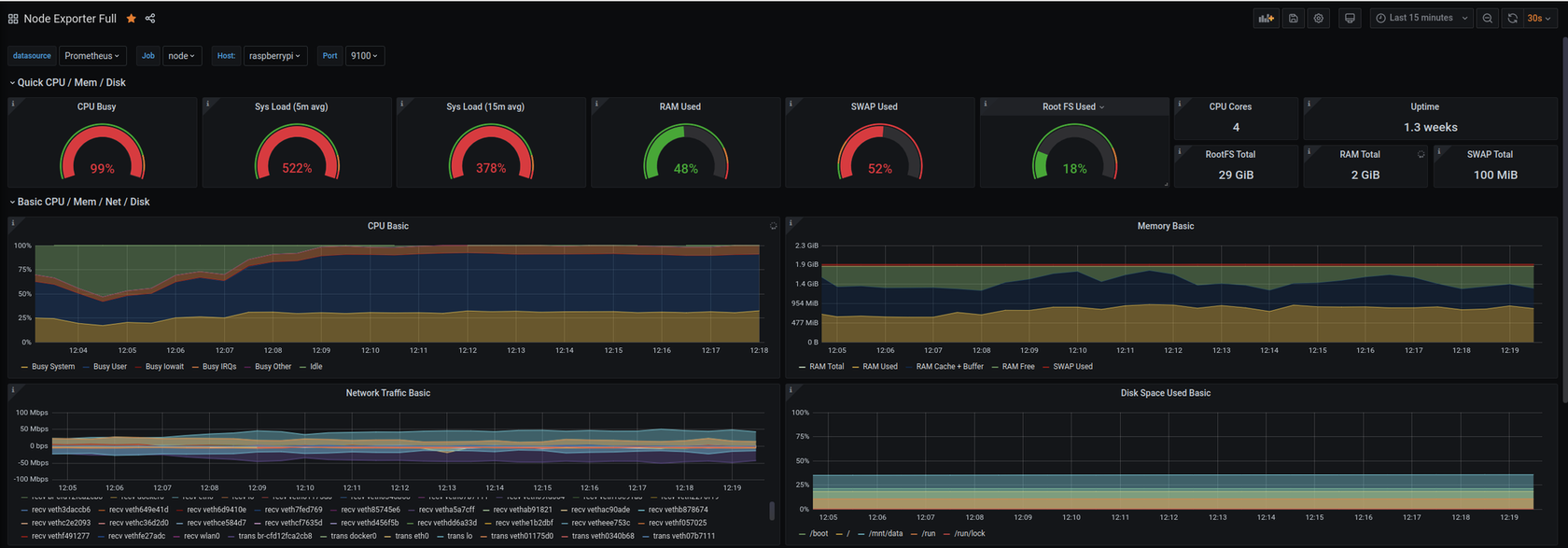

The archive keeps working, but watching LIVE was no longer possible. So what do the charts show? Things aren't good there – the processor hit its limit, LA is above 5. Overall figures:

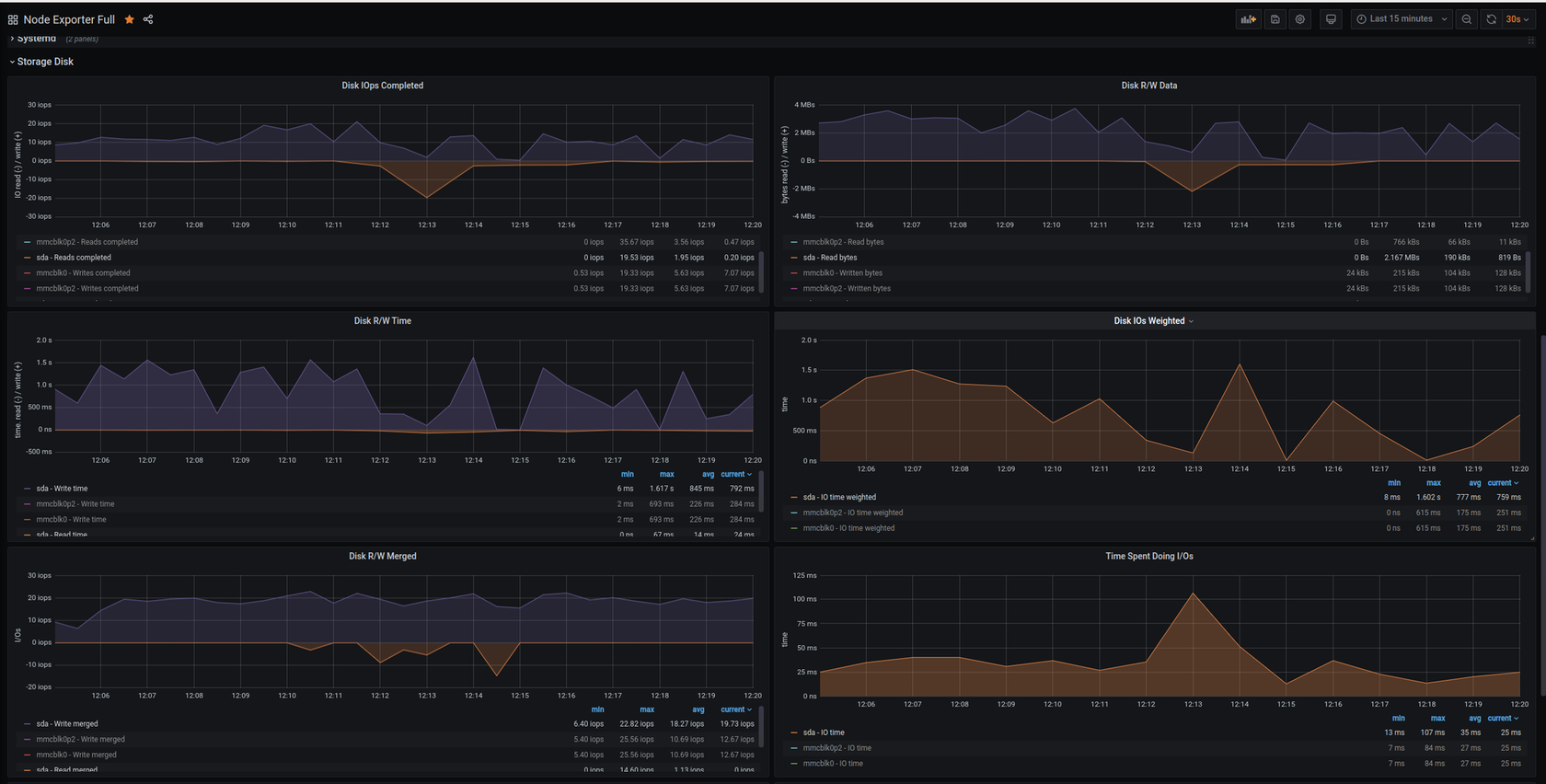

Hard drive (HDD) metrics:

To sum up: We don't recommend adding more than 10-12 cameras to Yucca on a Raspberry Pi 4, since this will affect the software's performance and responsiveness, but even that result is a great showing for a $35 single-board computer. We're already working on an improved architecture and plan to further reduce the workload going forward. This will save resources and, as a result, allow adding even more cameras.
