Example of setting up motion detection by email on Dahua cameras

Open the camera's web interface with administrator rights.

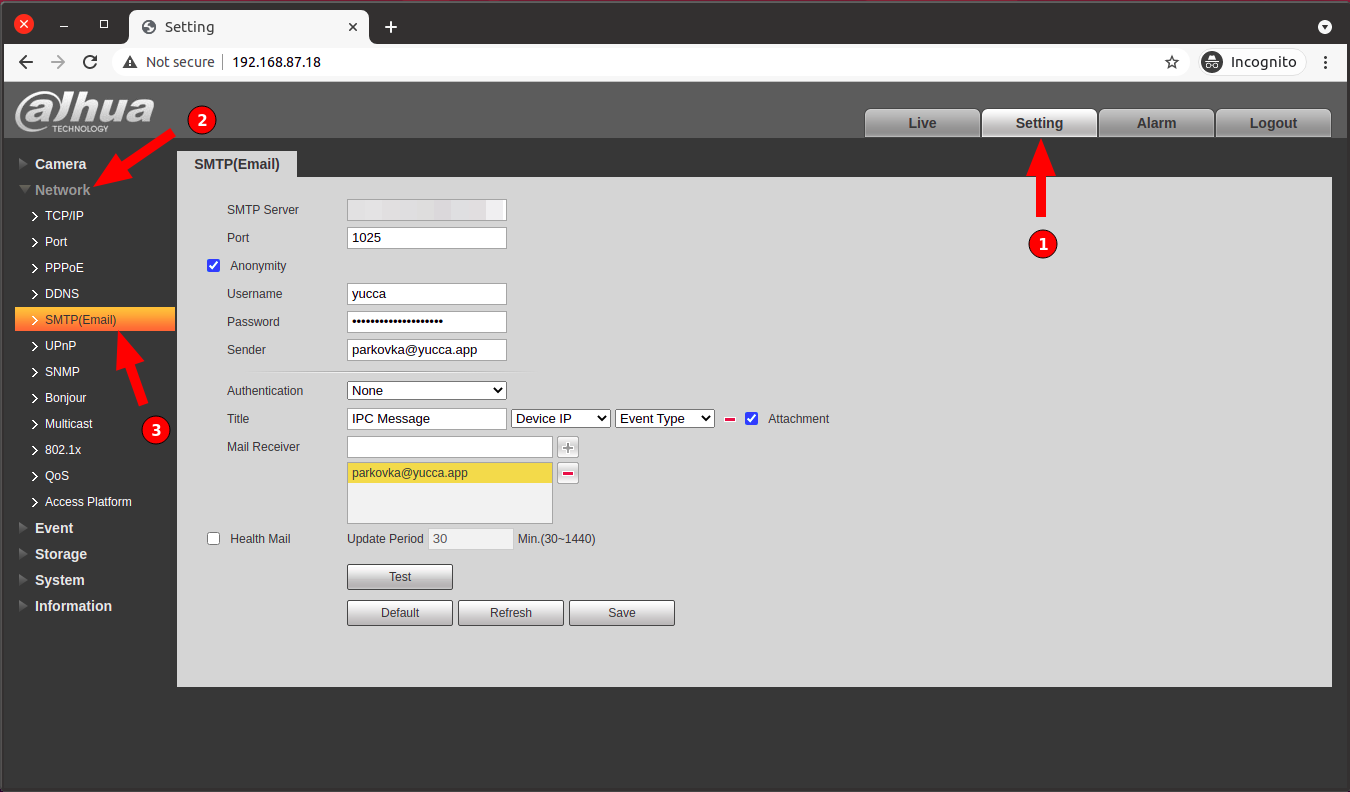

Go to the settings section Setting > Network > SMTP (Email)

dahua_01

Specify the connection details – SMTP server, Port, Sender and Mail Receiver. The last 2 must match. If authorization is enabled in the SMTP server settings, specify the username and password.

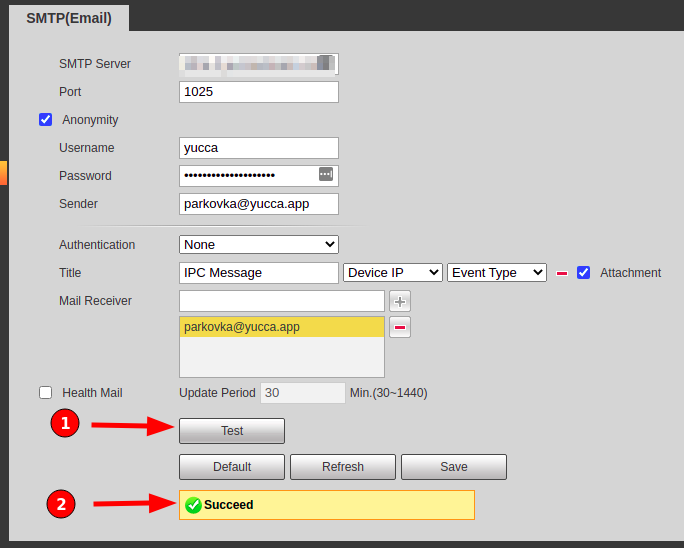

Click Test. If everything is correct, you'll see a message that it was sent successfully Succeed, and in the yucca logs a message about the created event:

Event annotation created, stream_id: 10

And a yellow marker will appear in the corresponding camera's progress bar.

dahua_02 bar_event

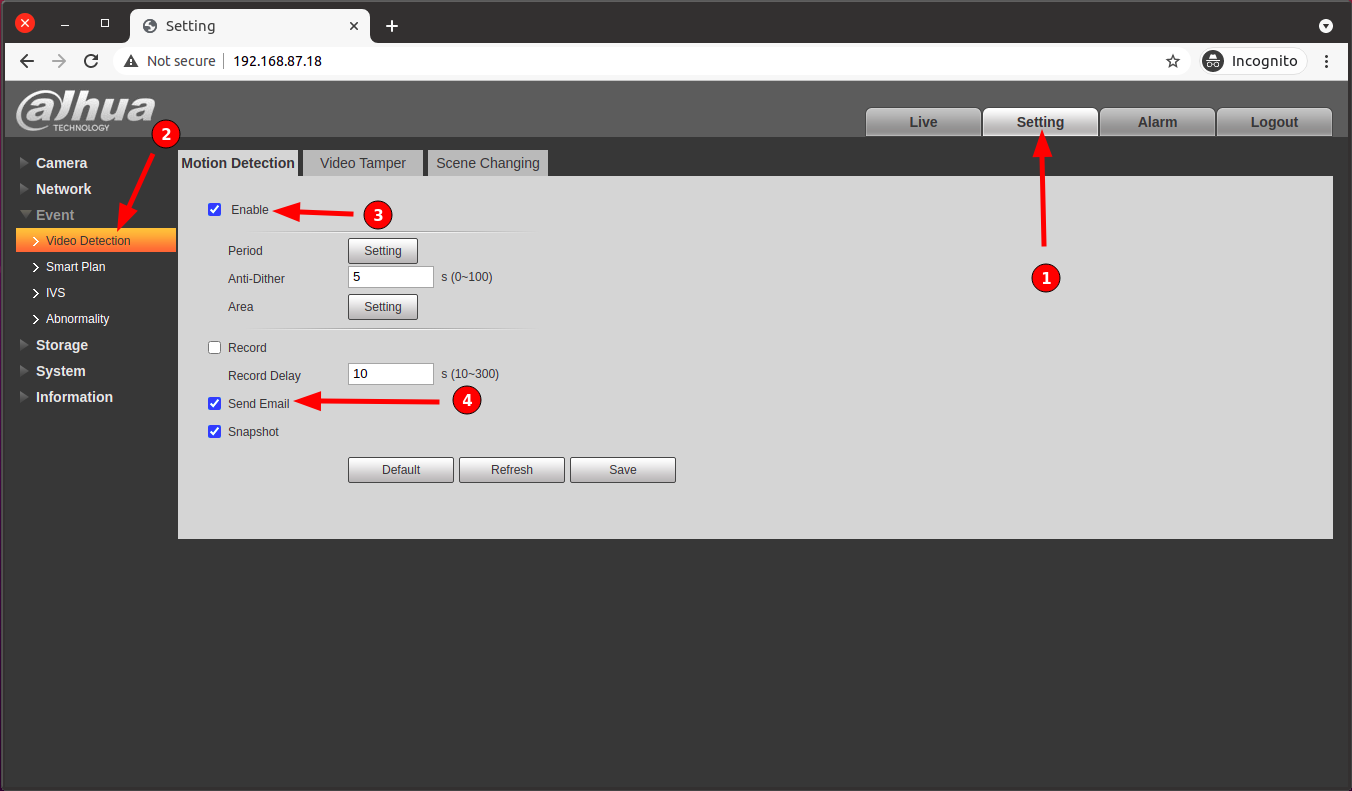

Next, you need to enable motion detection itself. Go to the settings section Setting > Event > Video Detection > Motion Detection. Enable the feature in the enable option, and set the notification type to Send Email.

dahua_03

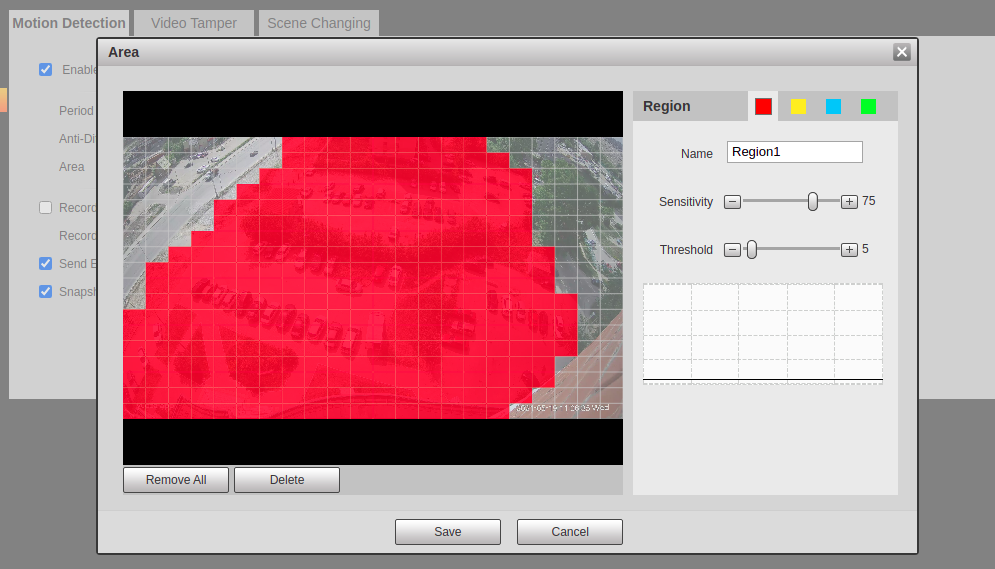

In the same tab, in the Area field, by clicking the Setting button, you can mark the area where motion detection is needed, as well as set the sensitivity level.

dahua_04
